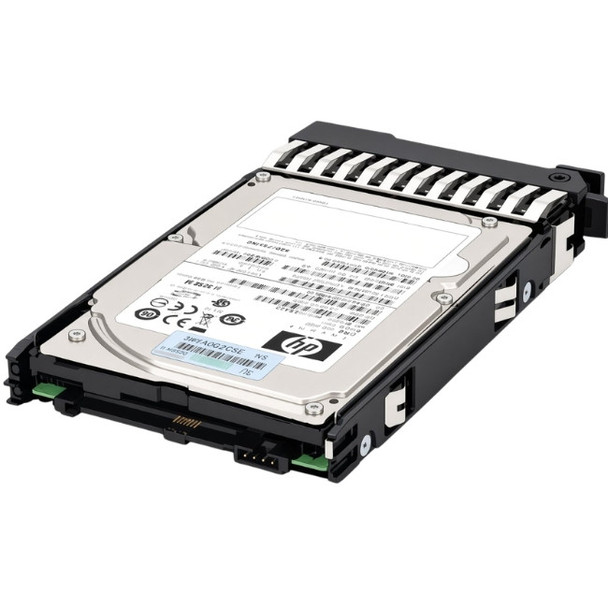

693648-B21 HPE 1.2TB 2.5in SFF 10kRPM 6G SAS G4-G7 Enterprise HDD

693648-B21 HPE 1.2TB 2.5inch Small Form Factor(SFF) 10000RPM 6Gbps SAS 512e Dual Port Enterprise Hard Drive for ProLiant Generation1 to Generation7 Servers (Refurbished with 30 Days Warranty)

Specifications

Brand: HPE
MPN: 693648-B21

Option Part Number: 693648-B21
Spare Part Number: 693719-001
Model Number: EG1200FCVBQ
Model Number: EG1200FDNJT
Assembly Number: 693647-001
Assembly Number: 726480-001

Compatibility Information

Designed for

HPE ProLiant BL Series: BL620C Gen7 (2.5 inch), BL680c Gen7 (2.5 inch), BL685c Gen7 (2.5 inch)

HPE ProLiant DL Series: DL120 Gen7 (2.5 inch), DL120 Gen7 Base (2.5 inch), DL120 Gen7 Entry (2.5 inch), DL120 Gen7 Performance (2.5 inch), DL360 Gen7 (2.5 inch), DL360 Gen7 Base (2.5 inch), DL360 Gen7 Central Management Server (2.5 inch), DL360 Gen7 Efficiency (2.5 inch), DL360 Gen7 Entry (2.5 inch), DL360 Gen7 Performance (2.5 inch), DL380 Gen7 (2.5 inch), DL380 Gen7 Base (2.5 inch), DL380 Gen7 Efficiency (2.5 inch), DL380 Gen7 Entry (2.5 inch), DL380 Gen7 Performance (2.5 inch), DL385 Gen7 (2.5 inch), DL385 Gen7 Base (2.5 inch), DL385 Gen7 Entry (2.5 inch), DL385 Gen7 HE (2.5 inch), DL385 Gen7 Performance (2.5 inch), DL580 Gen7 (2.5 inch), DL580 Gen7 Base (2.5 inch), DL580 Gen7 High Performance (2.5 inch), DL585 Gen7 (2.5 inch), DL585 Gen7 Base (2.5 inch), DL585 Gen7 Performance (2.5 inch)

HPE ProLiant ML Series: ML110 Gen7 (2.5 inch), ML110 Gen7 Base (2.5 inch), ML110 Gen7 Entry (2.5 inch), ML110 Gen7 Performance (2.5 inch)

General Specifications

Device Type: Hard Drive - Hot-Swap
Capacity: 1.2 TB
Form Factor: 2.5 inch SFF
Interface: SAS 6Gbps
Format Type: 512e
Plug Type: Hot Plug
Carrier Type: Standard Carrier
Workload: Enterprise
Features: Dual Port, Advanced Format 512e
Bundled with: HPE Standard Carrier

Performance

Drive Rotation Speed: 10000 RPM
External Data Transfer Rate: 600 MB/s
Average Seek Time: 4.6 ms
Max Seek Time: 8.9 ms
Track-to-Track Seek Time: 0.3 ms

Expansion & Connectivity

Interfaces: 1 x SAS 6 Gb/s
Compatible Bay: 2.5" SFF

Product Dimensions

Width: 3.10 inch
Depth: 5.40 inch
Height: 0.60 inch

Environmental Parameters

Min Operating Temperature: 50° F (10°C)
Max Operating Temperature: 95° F (35°C)

HPE Server Enterprise Hard Drives offer the highest level of performance and reliability for your most demanding application workloads. Enterprise drives help you improve server response times, power more transactions per second, and accelerate data transfer (I/O) speeds. HPE Server Enterprise Hard Drives are backed by over 3.35 million hours of the industry’s most rigorous testing and qualification program, ensuring customers' reliable, rugged drives. Prevent unauthorized access to your data with HPE Digitally Signed Firmware. It provides the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks. The self-describing icons on the HPE Smart Carrier takes the guesswork out of a drive’s status, and a “do not remove” button prevents data loss from human error.

Performance and Reliability for Any Workload
HPE Server Enterprise Hard Drives are ideal for transaction processing, database applications, Big Data analytics, and high-performance computing.
Broad portfolio of customized solutions provide up to 2.4 TB of storage.
Efficient drives provide power for space constrained data centers.
Latest 12G SAS interface for increased performance.
Stable and consistent portfolio of drives offering long life cycles and steady supply.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE 693648-B21 Enterprise hard drive has a 2.5 inch form factor and a 6 Gbps external data transfer rate. It has a spindle speed of up to 10000 RPM and a 1.2 TB capacity. This Small Form Factor hard drive uses a SAS-6Gbps interface and has 30 Days Warranty.
