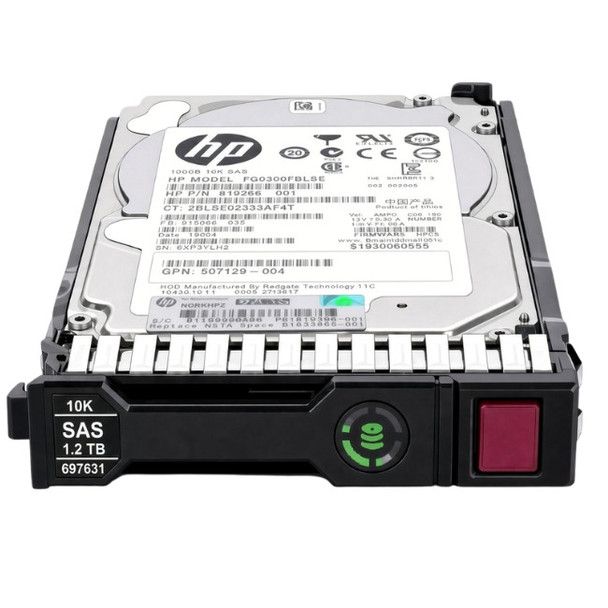

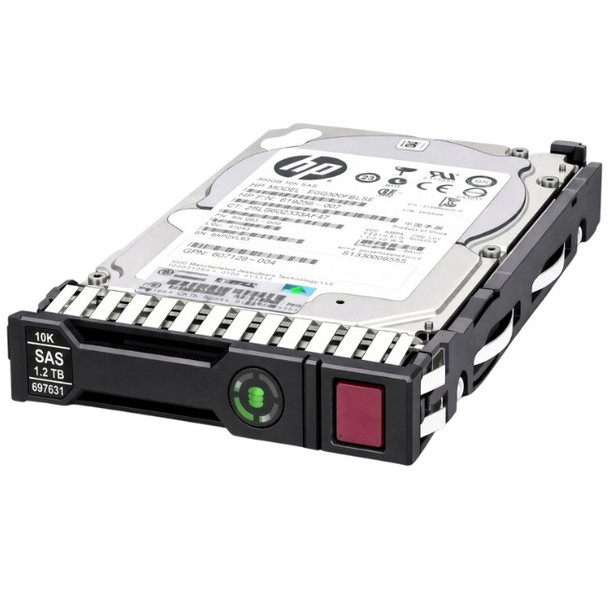

697574-B21 HPE 1.2TB 2.5in SFF 10kRPM 6G SAS SC G8 G9 G10 HDD

697574-B21 HPE 1.2TB 2.5inch Small Form Factor(SFF) 10000RPM 6Gbps SAS Smart Carrier Enterprise Hard Drive for ProLiant Generation8 Generation9 Generation10 Servers (Refurbished with 30 Days Warranty)

Specifications

Brand: HPE
MPN: 697574-B21

Option Part Number: 697574-B21
Spare Part Number: 697631-001
Model Number: EG1200FCVBQ
Model Number: EG1200FDNJT
Assembly Number: 693647-001
Assembly Number: 726480-001

Compatibility Information

Designed for

HPE ProLiant DL Series: DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL385p Gen8 (2.5 inch), DL385p Gen8 Dedicated Workload (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Maximized Consolidation (2.5 inch), DL385p Gen8 Storage (2.5 inch)

HPE ProLiant ML Series: ML310e Gen8 (2.5 inch), ML310e Gen8 Base (2.5 inch), ML310e Gen8 Entry (2.5 inch), ML310e Gen8 Performance (2.5 inch), ML350p Gen8 (2.5 inch)

HPE ProLiant SL Series: SL250s Gen8 Left Tray (2.5 inch), SL250s Gen8 Right Tray (2.5 inch), SL270s Gen8 1U Left Half Width Tray (2.5 inch), SL270s Gen8 1U Right Half Width Tray (2.5 inch)

General Specifications

Device Type: Hard Drive - Hot-Swap
Capacity: 1.2 TB
Form Factor: 2.5 inch SFF
Interface: SAS 6Gbps
Bytes per Sector: 512
Plug Type: Hot Plug
Carrier Type: Smart Carrier (SC)
Workload: Enterprise
Bundled with: HPE Smart Carrier

Performance

Drive Rotation Speed: 10000 RPM
External Data Transfer Rate: 600 MB/s (6 Gb/s)
Average Seek Time: 4.6 ms
Max Seek Time: 8.9 ms
Track-to-Track Seek Time: 0.3 ms

Expansion & Connectivity

Interfaces: 1 x SAS 6 Gb/s
Compatible Bay: 2.5" SFF

Product Dimensions

Width: 3.00 inch
Depth: 4.70 inch
Height: 0.60 inch

Environmental Parameters

Min Operating Temperature: 50° F (10°C)
Max Operating Temperature: 95° F (35°C)

HPE Server Enterprise Hard Drives are built from the ground up for demanding enterprise workloads. They deliver faster response times, higher transaction throughput, and I/O speeds that scale with the demands of transaction processing, database operations, and high-performance computing environments. Every drive is validated through over 3.35 million hours of rigorous HPE testing durability here isn't just a claim, it's a documented standard your infrastructure can depend on, even under sustained 24/7 workloads.
Paired with the HPE Smart Carrier (SC), self-describing status icons and a "do not remove" button make drive monitoring simple and help prevent data loss from human error.

Performance and Reliability for Any Workload
HPE Server Enterprise Hard Drives are built for transaction processing, database applications, big data analytics, and high-performance computing.
A broad portfolio of customized solutions delivers up to 1.8 TB of storage.
Efficient drives provide reliable power for space-constrained data centers.
The latest 12G SAS interface ensures increased performance.
A stable, consistent drive portfolio offers long life cycles and steady supply.

Smart Carrier
HPE Hard Drives with Smart Carrier are designed to provide an interface that communicates critical status and management information. Status LED icons and a spinning activity ring, which reflects the data-writing process, notify users of the drive's current status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon on the tray's eject button lights up to warn users when removing the drive would cause data loss.

Serial Attached SCSI (SAS) represents the natural progression of SCSI technology, retaining its established software architecture while introducing a serial physical connection for improved performance. As enterprise storage requirements grow in scale and complexity, factors such as capacity, density, security, and scalability have become increasingly important. Enterprise data centers operate continuously, supporting simultaneous requests from multiple users while allowing for growth and maintenance without service interruption. SAS is designed to meet these demands while delivering high performance.

The HPE 697574-B21 Enterprise hard drive has a 2.5 inch form factor and a 6Gbps external data transfer rate. It has a spindle speed of up to 10000 RPM and a 1.2 TB capacity. This Small Form Factor drive uses a SAS 6Gbps interface and has 30 Days Warranty.
