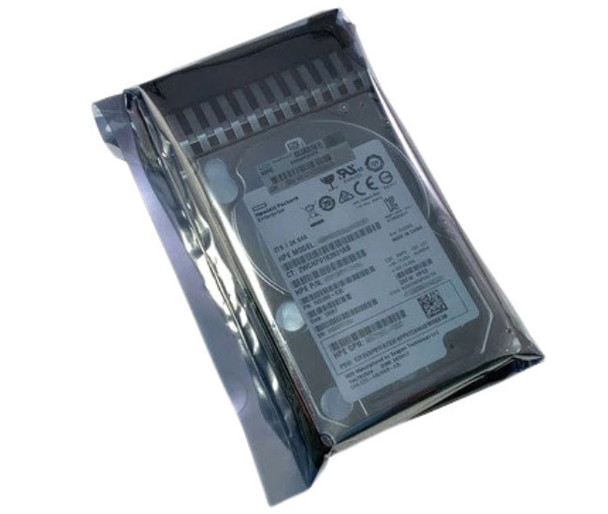

EG001800JWJNL HPE MSA 1.8TB 2.5in SFF 10kRPM 12Gbps SAS Enterprise HDD

EG001800JWFVC HPE MSA 1.8TB 2.5inch Small Form Factor(SFF) 10000RPM 12Gbps SAS 512e Dual Port Enterprise Hard Drive for MSA 1040 2040 Storage Arrays (New in Factory Sealed with 3 Years Warranty)

Specifications

Brand: HPE
MPN: EG001800JWJNL

Option Part Number: J9F49A
Spare Part Number: 787649-001
Model Number: EG1800JEHMD
Model Number: EG1800JEMDB
Model Number: EG1800JFHMH
Model Number: EG001800JWJNR
Model Number: EG001800JWFVC
Model Number: EG001800JWJNL
Assembly Number: 787677-005

Compatibility Information

Designed for

HPE Modular Smart Array: MSA 1040 Dual Controller SFF Bundle, MSA 1040 Dual Controller SFF Storage, MSA 2040 SFF SAN Storage

General Specifications

Device Type: Hard Drive - Hot-Swap
Capacity: 1.8 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Format Type: 512e
Carrier Type: Standard Carrier
Workload: Enterprise
Features: Dual Port, Advanced Format 512e
Bundled with: HPE SmartDrive carrier

Performance

Drive Rotation Speed: 10000 RPM
Drive Transfer Rate: 12 Gb/sec (external)
Average Seek Time: 3.7 ms
Max Seek Time: 7.3 ms
Track-to-Track Seek Time: 0.1 ms

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Power Requirement

Idle Time: 4.80 Watt
Random R/W: 6.00 Watt
Sequential Read: 7.80 Watt
Sequential Write: 6.60 Watt

Product Dimensions

Width: 3.10 inch
Height: 0.63 inch
Depth: 4.70 inch

Environmental Parameters

Min Operating Temperature: 50° F (10°C)
Max Operating Temperature: 95° F (35°C)

HPE Server Enterprise Hard Drives are built from the ground up for demanding enterprise workloads. They deliver faster response times, higher transaction throughput, and I/O speeds that scale with the demands of transaction processing, database operations, and high-performance computing environments. Every drive is validated through over 3.35 million hours of rigorous HPE testing so durability here isn't a claim, it's a documented standard your infrastructure can depend on, even under sustained 24/7 workloads.

Serial Attached SCSI (SAS) represents the natural progression of SCSI technology, retaining its established software architecture while introducing a serial physical connection for improved performance. As enterprise storage requirements grow in scale and complexity, factors such as capacity, density, security, and scalability have become increasingly important. Enterprise data centers operate continuously, supporting simultaneous requests from multiple users while allowing for growth and maintenance without service interruption. SAS is designed to meet these demands while delivering high performance.

The HPE MSA EG001800JWJNL Enterprise Hard Drive has a 2.5inch form factor and a 12Gbps external data transfer rate. It has a spindle speed of up to 10000rpm and a 1.8TB capacity.This Small Form Factor Dual Port Hard Drive uses a 12Gbps SAS (serial attached SCSI) interface and comes with 3 Years Warranty.
