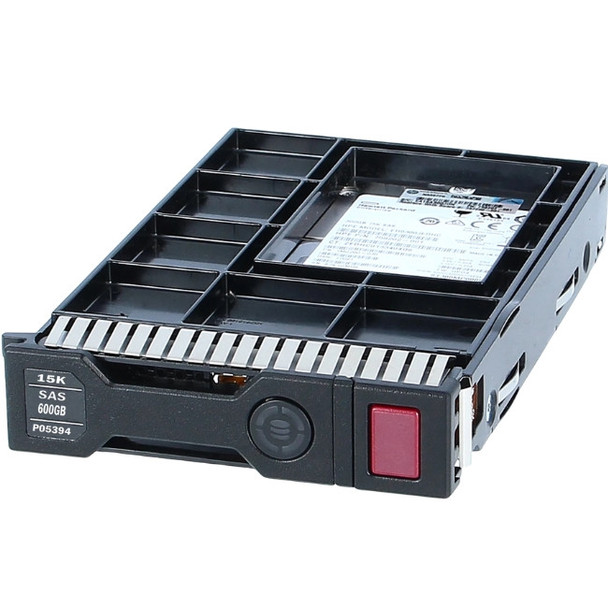

P04695-K21 HPE 600GB 3.5in 15kRPM 12G SAS DS SCC G10 Enterprise HDD

P04695-K21 HPE 600GB 3.5inch LFF 15000RPM 12Gbps SAS 512n Digitally Signed Firmware Smart Carrier Converter Enterprise Hard Drive for ProLiant Generation9 Generation10 Servers (New Bulk with 90 Days Warranty)

Specifications

Brand: HPE
MPN: P04695-K21

Option Part Number: P04695-B21
Spare Part Number: P05394-001
Model Number: EH000600JWCPL
Model Number: EH000600JWHPN
Assembly Number: 867254-002
Assembly Number: 875217-002

Compatibility Information

Designed for

HPE ProLiant DL Series: DL380 Gen10 (3.5 inch), DL380 Gen10 Base (3.5 inch), DL380 Gen10 Entry (3.5 inch), DL380 Gen10 High Performance (3.5 inch), DL380 Gen10 Performance (3.5 inch), DL380 Gen10 Solution (3.5 inch) Servers

General Specifications

Device Type: Hard Drive - Hot-Swap
Capacity: 600 GB
Form Factor: 3.5 inch LFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Format Type: 512n
Carrier Type: Smart Carrier Converter (SCC)
Workload: Enterprise
Features: Advanced Format 512n, Digitally Signed Firmware
Bundled with: HPE Smart Carrier Converter

Performance

Drive Rotation Speed: 15000 RPM
Transfer Rate Synchronous (Max): 12Gb/sec
OD Media Rate, Max Sequential Throughput (MiB/s): 260
128Kib Random Read (IOPs): 220
128Kib Random 70% Read / 30% Write (IOPs): 220
128Kib Random 50% Read / 50% Write (IOPs): 220

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF

Power Requirement

Idle Time: 5.60 Watt
Random R/W: 7.20 Watt
Sequential Read: 7.70 Watt
Sequential Write: 6.20 Watt

Product Dimensions

Height: 5.50 inch
Width: 7.25 inch
Depth: 8.75 inch
Weight: 3.00 lbs

Environmental Parameters

Min Operating Temperature: 50° F (10°C)
Max Operating Temperature: 95° F (35°C)

HPE Server Enterprise Hard Drives are built from the ground up for demanding enterprise workloads. They deliver faster response times, higher transaction throughput, and I/O speeds that scale with the demands of transaction processing, database operations, and high-performance computing environments. Every drive is validated through over 3.35 million hours of rigorous HPE testing durability here isn't just a claim, it's a documented standard your infrastructure can depend on, even under sustained 24/7 workloads.
Each drive features Digitally Signed Firmware (DS), verifying that firmware comes from a trusted source and protecting your data against unauthorized access and malicious attacks. Paired with the HPE Smart Carrier (SC), self-describing status icons and a "do not remove" button make drive monitoring simple and help prevent data loss from human error.

Performance and Reliability for Any Workload
HPE Server Enterprise Hard Drives are ideal for transaction processing, database applications, Big Data analytics, and high-performance computing.
Broad portfolio of customized solutions provide up to 2.4 TB of storage.
Efficient drives provide power for space constrained data centers.
Latest 12G SAS interface for increased performance.
Stable and consistent portfolio of drives offering long life cycles and steady supply.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE P04695-K21 Enterprise Hard Drive has a 3.5 inch form factor and 12 Gbps external data transfer rate. It has a spindle speed of up to 15000 RPM and has 600 GB storage capacity. This Large Form Factor Digitally Signed Firmware Hard Drive uses a SAS-12Gbps interface and has 90 Days Warranty.
