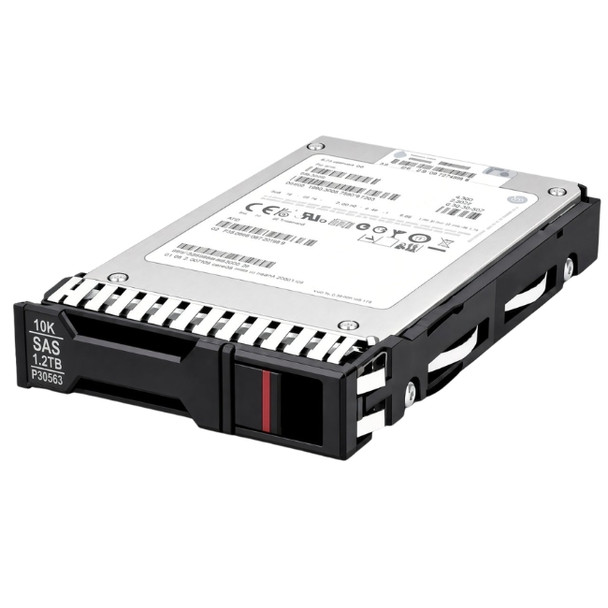

P28586-K21 HPE 1.2TB 2.5in 10kRPM 12G SAS BC Mission Critical G10+HDD

P28586-K21 HPE 1.2TB 2.5inch SFF 10000RPM 12Gbps SAS 512n Basic Carrier Mission Critical Multi Vendor Hard Drive for ProLiant Generation10 Plus Servers (Factory Sealed with 3 Years Warranty)

Specifications

Brand: HPE
MPN: P28586-K21

Option Part Number: P28586-B21
Spare Part Number: P30563-001

Compatibility Information

Designed for

HPE ProLiant DL Series: DL20 Gen10 Plus (2.5inch), DL20 Gen10 Plus Base (2.5inch), DL20 Gen10 Plus Entry (2.5inch), DL20 Gen10 Plus High Performance (2.5inch), DL20 Gen10 Plus Performance (2.5inch), DL325 Gen10 Plus V2 (2.5inch), DL325 Gen10 Plus V2 Base (2.5inch), DL325 Gen10 Plus V2 for Weka Base Tracking (2.5inch), DL325 Gen10 Plus V2 Performance (2.5inch), DL345 Gen10 Plus (2.5inch), DL345 Gen10 Plus Base (2.5inch), DL345 Gen10 Plus Entry (2.5inch), DL360 Gen10 Plus (2.5inch), DL360 Gen10 Plus All-NVMe Server for Software Defined Storage (2.5inch), DL360 Gen10 Plus for Weka Base Tracking (2.5inch), DL360 Gen10 Plus Network Choice (2.5inch), DL365 Gen10 Plus (2.5inch), DL380 Gen10 Plus (2.5inch), DL380 Gen10 Plus Network Choice (2.5inch)

HPE ProLiant ML Series: ML30 Gen10 Plus (2.5inch), ML30 Gen10 Plus Entry (2.5inch), ML30 Gen10 Plus Performance (2.5inch)

HPE SimpliVity 325 Gen10 Plus V2 Node (2.5inch)

General Specifications

Device Type: Hard Drive - Hot-Swap
Capacity: 1.2 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Format Type: 512n
Carrier Type: Basic Carrier (BC)
Workload: Mission Critical
Features: Advanced Format 512n
Bundled with: HPE Basic Carrier

Performance

Drive Rotation Speed: 10000 RPM
Drive Transfer Rate: 12 Gb/sec (external)
OD Media Rate, Max Sequential Throughput (MiB/s): 195
128Kib Random Rd (IOPs): 165
128Kib Random 70% RD / 30% WT (IOPs): 165
128Kib Random 50% RD / 50% WT (IOPs): 165

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Power Requirement

Idle Time: 4.10 Watt
Random R/W: 7.50 Watt
Sequential Read: 6.50 Watt
Sequential Write: 6.10 Watt

Product Dimensions

Height: 5.75 inch (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)

Environmental Parameters

Min Operating Temperature: 50° F (10°C)
Max Operating Temperature: 95° F (35°C)

HPE Server Enterprise Hard Drives offer the highest level of performance and reliability for your most demanding application workloads. Enterprise drives help you improve server response times, power more transactions per second and accelerate data transfer (I/O) speeds. Drives are backed by over 3.35 million hours of the industry's most rigorous testing and qualification program ensuring customer's reliable, rugged drives.

Performance and Reliability for Any Workload
HPE Server Enterprise Hard Drives are ideal for transaction processing, database applications, Big Data analytics, and high-performance computing.
Broad portfolio of customized solutions provide up to 2.4 TB of storage.
Efficient drives provide power for space constrained data centers.
Latest 12G SAS interface for increased performance.
Stable and consistent portfolio of drives offering long life cycles and steady supply.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE P28586-K21 Mission Critical Hard Drive has a 2.5 inch form factor and a 12Gbps external data transfer rate. It has a spindle speed of up to 10000 RPM and a 1.2 TB capacity. This Small Form Factor Hard Drive uses a SAS-12Gbps (serial attached SCSI) interface and comes with 3 Years Warranty.
